WPC production line, with new deisgns in 2024, is mainly used to produce the hollow or solid wood plastic composite profiles from wood powder, HDPE plastic and processing additives. With different WPC molds, this wpc production line can produce diferent WPC profiles for indoor and door use, for example, wpc decking, wpc panel, wpc fence, wpc wall cladding, wpc pergola profile, wpc board, wpc pallet profile, wpc pillar, wpc bench,etc.
The new wpc production line includes the following unit:
1, material loader,
2, conical twin screw extruder SJZ65 or SJZ80,
3, wpc mold,
4, calibration table,
5, cutter
6, stacker.
7, sanding machine or brushing machine, etc.
WPC mixer and WPC compounding pelletizers are auxliary machines for the wpc profile extrusion, as well as the WPC crusher
and pulverizer for waste wood plastic recycling.
Air compressor and water chiller can be also ordered together with WPC production lines.
Wood powder making machine and waste plastic recycling washing machine and pelletizer machine are chosen for use to save
part of material cost if your WPC plants have enough scale.
Main extruder:
Twin screw extruder is usually used for the PE WPC production, also for one step extrusion of pvc wpc production.
Alloy 38CrMoAlA barrel and screw are assembled on our WPC extruders, with powerful motor and reducer for driving.
metering feeder, cast aluminum heater and good vacuum degassing unit.
Calibration table
Calibration table includes the auto water circular system for cooling wpc profiles, and vortex air dryer for blow off the left
water after cooling. It can be adjusted on 6 directions for easy installation and operation of the wpc moulds while production,
control panel with waterproof cover, electrical cabinet is hiden in the frame structure, uniform door plates for beatiful apparence.
Cutter machine
The cutter machine is used to cut the WPC profiles into short piece while the production. While cutting, the WPC profile compressing
by pneumatical machanism, automatic length fixed for cutting through the PLC module and touch screen for parameter set.
Control Cabinet
Inverter, temperature meter and electrical components are from famous brands for the main control cabinet, for example, ABB inverter,
OMRON temperateure meter, etc. material feeding speed and extrusion speed can be adjusted easily on the panel.

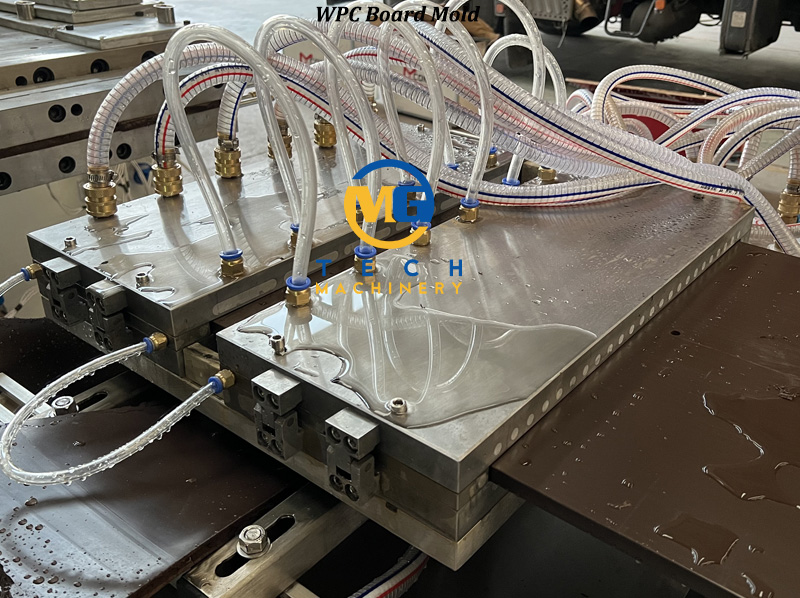

WPC Molds
WPC molds are very important to the WPC production, by working together with the WPC production line, kinds of WPC profiles will be
shaped. The user can provide the size and shape of a required WPC product, or choose an exist mold design from our list record for start
in the WPC industry. One set of WPC mold includes a die head, shaping mold and cooling tank, as well as the small parts such as cooling
water tie-in and air joints.
Usually, alloy steel 3Cr17 are used to make the WPC molds.
While the WPC extruding, if on line embossing machine and molds are used, the WPC profiles with impressive 3D patterns can be
produced.
Advantages of WPC production line in MG Machinery:
1, stable and smooth extrusion.
2, uniform and high plasticizing ability.
3, good profile shaping, less waste products
4, auto protection function while overload.
5, higher automation.
6, lower power consumption.
7, quality electical applicance for control cabinet: ABB inverter, SIEMENS contact, OMRON meters, etc.
8, dust-proof visual cover plate for contaol cabinet.
9, strong structure.
10, long lifetime.

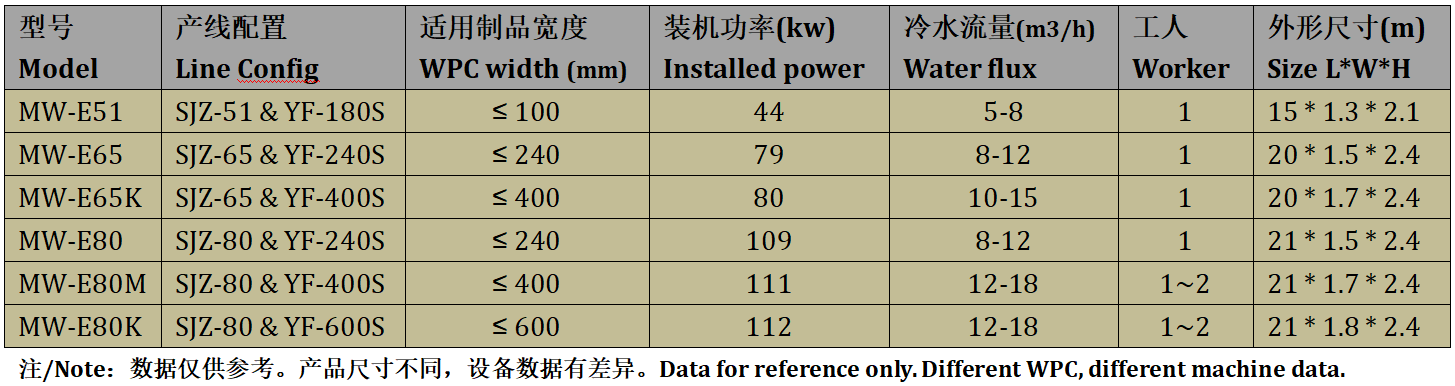

Models of WPC production line in MG Machinery:
Why choose us?
1, we can provide the most suitable solution proposals according to your materials conditions and requirement.
2, professional design for machine flowchart and workshop layout according to your workshop area.
3, skilled and experienced workers for the machine manufacturing.
4, good testing for the machines before shipment.
5, shipment on time.
7, careful machine loading and fixing work in container.
8, dispatch engineer for after sale service in your company on time
9, training for machine and operation on time.
10, technology support.
etc.
Our plastic recycling machines and extrusion machines have been exported to many countries since 2007,
for example, Japan, Indonesia, Vietnam, Thailand, Malaysia, India, Iran, UAE, Saudi Arabia, Israel, Iraq, Ukraine, Serbia,
Geogia, Russia, Kenya, Ghana, Togo, Sudan, USA, Mexico, Chile, Peru, Bolivia, Argentina, etc.
