WPC co extrusion line is used to produce the better quality wood plastic composite profiles from HDPE or PVC plastic, wood powder and additives. It's the latest wpc machine with advanced technology to produce higher quality wpc profiles. By working with different moulds, the wpc co extrusion line can produce kinds of wpc profiles for different usage, for example, wpc decking, wpc wall cladding, wpc fence, wpc panel, wpc tube, etc.
There are two popular types of WPC co extruison line at present:
1, PE WPC co extrusion line consists of conical twin screw extruder, co extruder, co extrusion mould, calibration table, cutter and stacker.
2, PVC WPC co extrusion line consists of conical twin screw extruder or single screw extruder, co extruder, co extrusion mould, calibration table, haul-off, cutter and stacker.
For both main wpc extruder and co extruder, the alloy 38CrMoAlA is used for making the barrels and screws, with long lifetime.
Cast aluminum heater and air cooling system are assembled on the barrel, and use intelligent meters for temperature set and control of heating and cooling.
Powerful vacuum degassing system is used for the main extruder, hopper dryer is usually used for the co-extruder to dry the materials for outer layer of WPC profiles.
WPC co extrusion moulds are changeable units on the wpc co extrusion line by different size and shape requirements of wpc profiles.
On line embossing machine is usually used on the wpc co extrusion line for direct 3D embossing while the wpc production process.
Other auxiliary machines are optional units by the different plastic choice in the wpc materials, For example, wpc mixer, wpc pelletizing machine, wpc sanding machine, etc.
Wood plastic composite are composite profiles made of wood fiber (wood powder) and thermoplastic such as PE, PP or PVC. The popular wpc profiles are PE WPC and PVC WPC at present. Therefore, there are two different WPC extrusion machine as PE WPC co extrusion line and PVC WPC co extrusion line.
To introduce the correct machines to you, please list the plastic type that you will use in the WPC production in your enquiry, as well as the size and shape description of wanted wpc profiles, We will provide our professional guidance in the proposal.
If you don't have size and shap of WPC product for production, we can share you the popular models for your choice.
Advantage of WPC co extrusion line in MG Machinery:
1, mature co extrusion technology support for operation and formula.
2, lower power consumption.
3, uniform and high plasticizing ability.
4, stable and smooth extrusion.
5, good profile shaping.
6, excellent on line embossing process
7, higher automation.
8, strong structure.
9, auto protection function while overload.

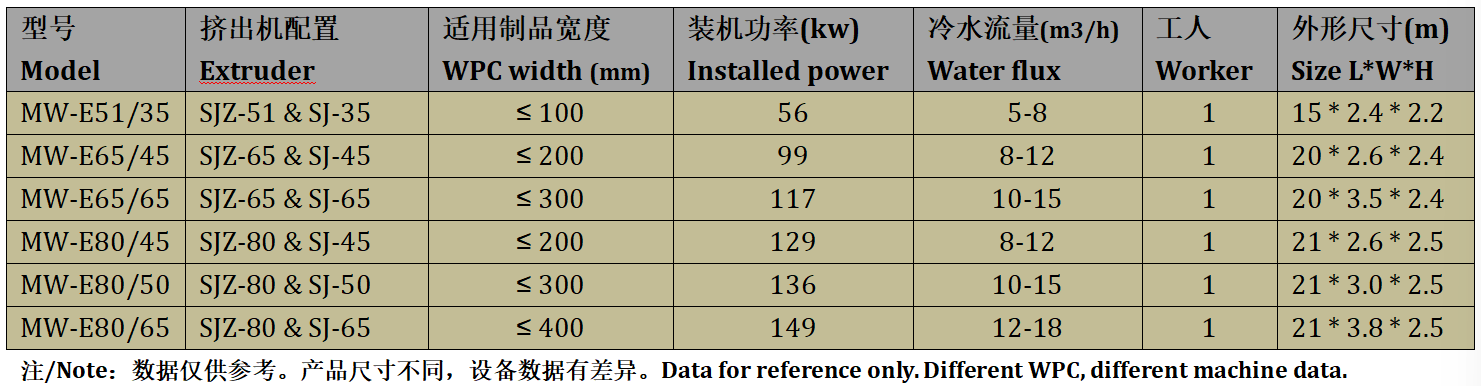

Models of WPC co extrusion lines
Besides the WPC co extrusion machines, we can support you more.
1, workshop design and layout guidence.
2, co extrusion wpc materials formula adjustment and update.
3, operation guidance on line.
4, shipment on time
5, dispatch engineers for after service at site.
7, share market information and new wpc technology.
etc.
Our machines have been exported to many countries, for example, Ukraine, Serbia, India, Japan, Thailand, Vietnam, USA, Mexico, Chile, Bolivia, Peru, Argentina ,etc.
