PE Plastic Flakes Water Ring Pelletizing Line For PE Flakes Scraps Recycling Pelletizing

Share
Product Description

PE flakes plastic water ring pelletizing line is mainly used to make the round plastic granules from the waste plastic PE flakes, scraps, squeezed PE films and parts of PP flakes.

Application:

1, PE plastic flakes or particles from plastic tanks, bottles, pallets, chairs, sheet, household appliances shells, pipes, lumps, etc.

2, agglomerated PE films and bags.

3, squeezed PE films and bags

4, unqualified PE pellets for reproduction.

5, PP flakes with lower MFI.

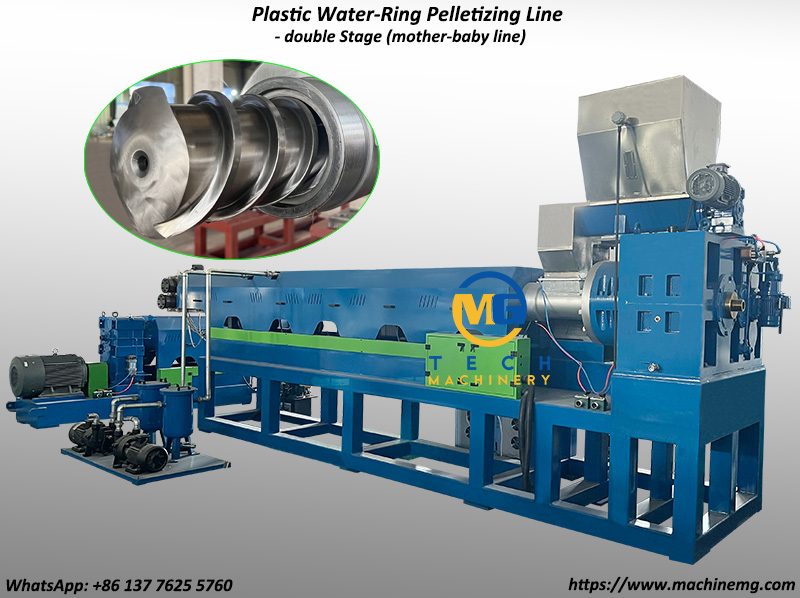

PE Plastic Flakes Water Ring Pelletizing Line For PE Flakes Scraps Recycling Pelletizing

It's a double stage pelletizing line, equipped with forced feeder for  smooth feeding of hard plastic mateirals, and water ring pelletizer for die face pellet cutting. Becaue of the high quality of ouput pellets, the PE plastic flakes water ring pelletizing lines have been widely used in the waste plastic recycling plants, plastic extrusion or injection manufacturing plants, and other plants for plastic pellets modification.

Reference video of the double stage water ring pelletizing line for PE flakes on YouTube:

https://www.youtube.com/watch?v=w_S6SDxLac4


Consists of the double stage PE plastic water ring pelletizing line:

1, material feeding unit: belt conveyor or screw loader.

2, forced feeder.

horizontal forced feeder with screw for metering feeding, avoid material blocking in the hopper.

PE Plastic Flakes Water Ring Pelletizing Line For PE Flakes Scraps Recycling Pelletizing

3, mother baby single screw extruders.

For the extruders, barrel and screw are made of 38CrMoAlA alloy, good durability. Powerful motor and reducer for driving to ensure the smooth extruding. And adopts cast aluminum heaters with good quality temperature meters for precise control to avoid degradation of materials while the recycling pelletizing.

PE Plastic Flakes Water Ring Pelletizing Line For PE Flakes Scraps Recycling Pelletizing

4, hydraulic filtration system

Usually, the standard one is the plate type double position hydraulic screen changers, but double column types are optional units.

5, water ring pelletizer

New design for the water ring pelletizer, the die face will not contact water directly, smooth cutting and good cooling.

PE Plastic Flakes Water Ring Pelletizing Line For PE Flakes Scraps Recycling Pelletizing

6, centrifugal dewatering machine

The sieve, paddles and body are made of stainles steel.

High speed rotation, high dehydration rate.

7, vibration sieve

Two layers fo rthe vibration sieve for classifying the pellets.

Stainless steel type.

8. cyclone system

Silo and pipeline are made of stainless steel.

9, control cabinet.

Centralized control cabinet for whole line operation country, more convenvience.

Famous brand electrical parts are used for this cabinet, for example, SIEMENS contact, OMRON temperature meter, Delta or ABB inverters, etc.

PE Plastic Flakes Water Ring Pelletizing Line For PE Flakes Scraps Recycling Pelletizing




Features

Advantage of our double stage PE plastic flakes water ring pelletizing line:

1, wide usage for kinds of waste plastic PE flakes, scraps and squeezed films.

2, good plasticizing and degassing for materials.

3, alloy barrel and screw with nitrogen procession, wearable, long lifetime.

4, hard teeth reducer, big torque.

5, SIEMENSE or WN motors with ABB inverter, steady running.

6, ceramic heater, even heating result.

7, OMRON temperature meter, precision control.

8, double position hydraulic screen changer for alternative working, high efficiency.

9, alloy knives for pelletizing cutter, smooth cutting, long use time.

10, embedded circular water cooling system, good cooling result for die and pellets.

11, easy operation and maintenance.

12, low power consumption

13, less manpower, high automation.

14, strong machine structure.


Main Techincal Parameter

Models of the double stage PE plastic flakes water ring pelletizing line for your choice:

PP PE Plastic Flakes Water Ring Pelletizing Line

Advantage

What we can do for you while the cooperation?

1, machine proposal design.

2, workshop layout design.

3, delivery on time.

4, guidance for machine installation, commissioning and operator training.

5, technology sharing all lifetime of the machine.

etc.

Customer Case

For 10s years development, our machines bave been exported to many countries, for example, Japan, Vietnam, Thailand, Malaysia, India, Ukraine, Saudi Arabia, UAE, Geogia, Serbia, Kenya, Ghana, Togo, USA, Mexico, Chile, Argentina, etc.
