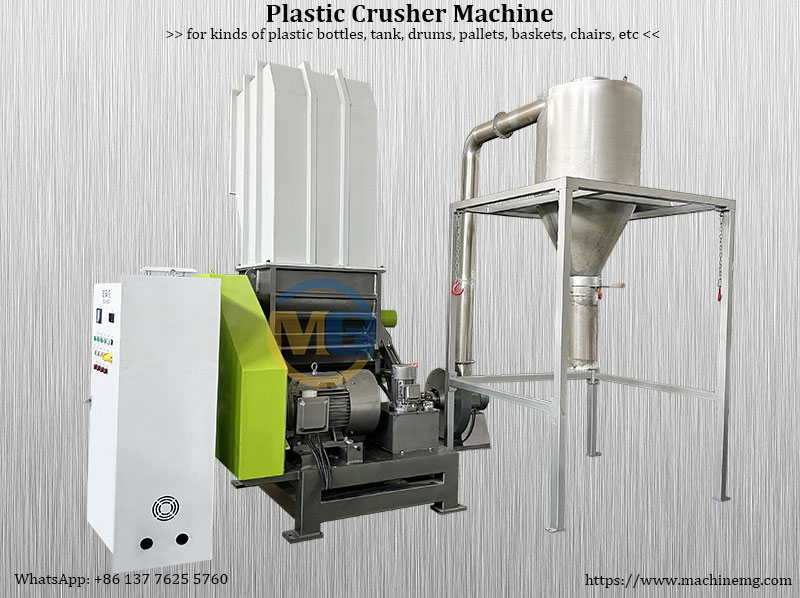

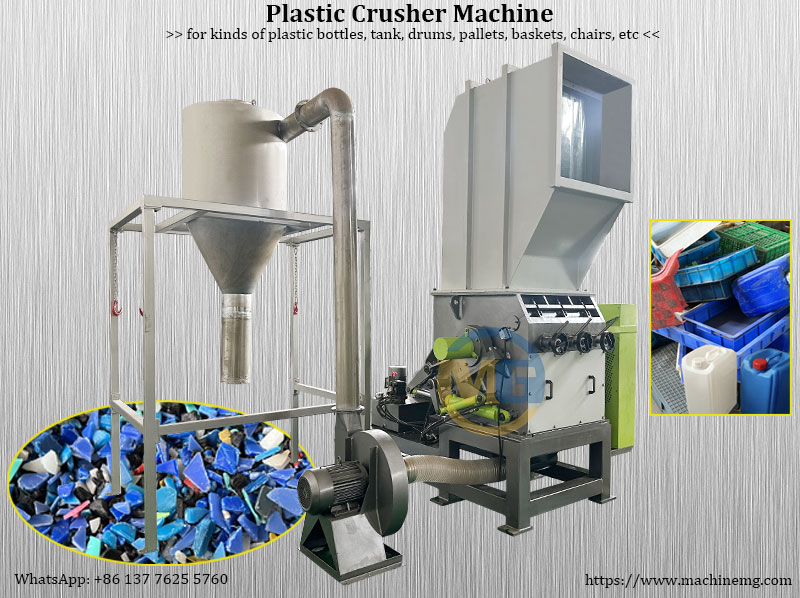

Plastic bottle grinder machine is mainly used to smash all the waste plastic bottles,tanks and drums into flakes for efficient recycling. The plsatic grinder machine is one kind of the heavy grinder machine with big rotor and alloy blades on V shape holder,
efficient crushing, less powder and large capacity.
Application:
1, PET bottles and tanks: mineral water bottles, juice bottles, cola bottles, oil bottles, chemical bottles, tanks and food containers, etc.
2, HDPE bottles: milk bottles, detergent bottles, shampoo bottles and tanks, etc.
3, PP barrels, basins and containers, etc
For all waste plastic bottle and tanks recycling, it is necessary to make the flakes from such waste plastic bottles and tanks, and that's the function of the plastic bottle grinders.
Refence video of the grinder machine for plastic bottles and tanks on our YouTube channel.
Consist of the plastic bottle grinder machine

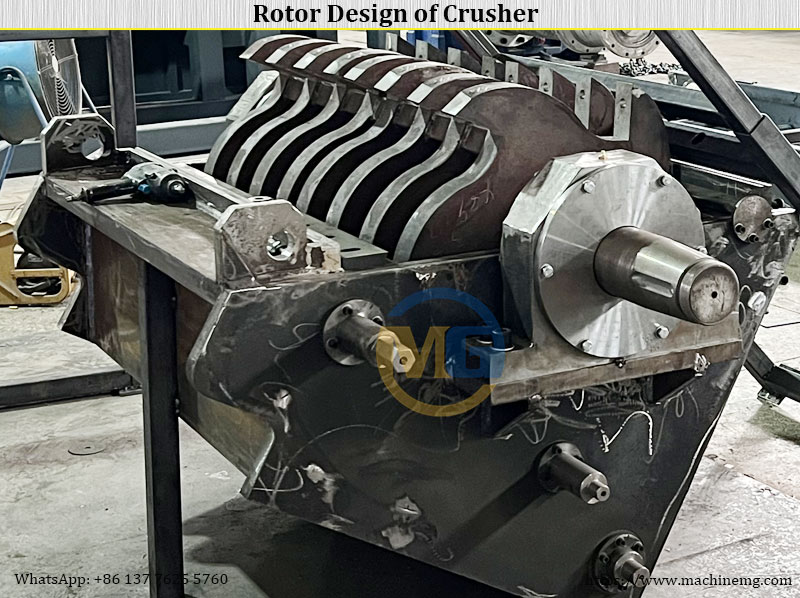

1, rotor and blades
The grinder rotor has 5 mounting rows for the rotary blades in V shape arrangement, so that the plastic bottles can be cut into flakes smoothly. In this way, It brings the higher throughput but less powder material, and lower noise levels.
The external bearing mounting is used on this bottle grinder, water proof, easy maintenance.
Both rotary blades and stationary blades are made of alloy steel, such as D2, good durability.
And the blades can be sharpened repeatedly in a long time once they are blunt.
2, driving system
The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. The motor drives the rotor through V belt and pulley.
Good quality motors are used for our crusher machines, for example, WN, SIEMENS and JIAMUSI, with high efficiency of energy utilization for long stable running time.
3, hopper
Usually we make the hard plastic crusher machines with side feeding inlets, and install plastic curtains on the inlet of crusher, to prevent the materials pump out while the crushing. On the top inside of the hopper, water spray unit is installed, but the users can choose to crush the plastic with water or without water.
Two units are optional for opening of the hopper for blade replacement or chamber cleaning. One is mechanical screw rod design, the other one is hydraulic system.
4, screen sieve
Screen sieves with different mesh sizes are replaceable based on different size requirements. A mechanical unit for easy change working.
The hinged screen frame is convenient for replacement of the screen sieves, and it can be installed and removed through a separate door.
5, crusher body frame
The body frame has a solid welded construction with thick carbon steel to form the heavy structure for steady crushing, avoid the frame cracking and excessive stress damage while crushing with full material loading. And anti-vibration rubber feet can be fixed to reduce vibration and noise.

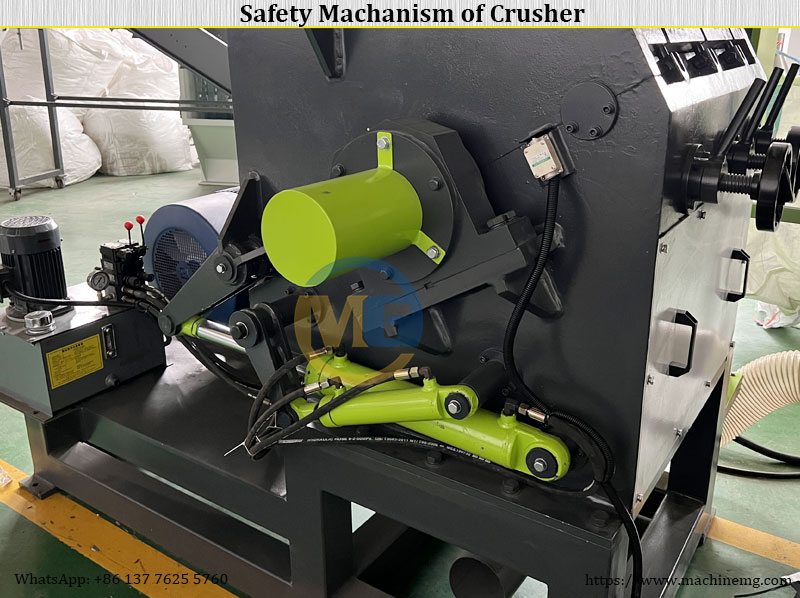

6, safety switch
A safety unit is installed on the crusher frame, once the hopper or front door is not closed well, the crusher will not start up.
And two emergency stop buttons are set on the machine body and control panel for quick response when emergency happen.
Auxiliary machines for working with the bottler grinders:
1, belt conveyor: the users can use this belt conveyor for feeding the plastic bottles into the crushing chamber from the ground, labor saving and high efficiency.
2, screw loader: it is used to discharge the plastic flakes of the bottles from the bottom of the grinder.
3, screw friction washer: instead of the screw loader, it can be used for washing the flakes of bottles while dischaging the plastic flakes from the grinding machine.
Are the plastic bottle grinder machine what you are looking for? please send an enquiry for more details and official quotation quickly. Thanks.
Advantage of the plastic bottle grinder machine
1, the main rotor passes strict dynamic balancing testing.
2, V shape installation for alloy blades to get higher output.
3, external bearing mounting for heavy duty bearing, water proof,dust proof, easy maintenance.
4, mechanical hydraulic system for hopper opening and sieve change, labor saving, fast and safe.
5, with safety limit switch, if the crusher parts is not closed 100%, it can't be started.
6, robust welded steel construction, heavy crusher model.
7, over load protective automatically.
8, quality certificate.
Etc.

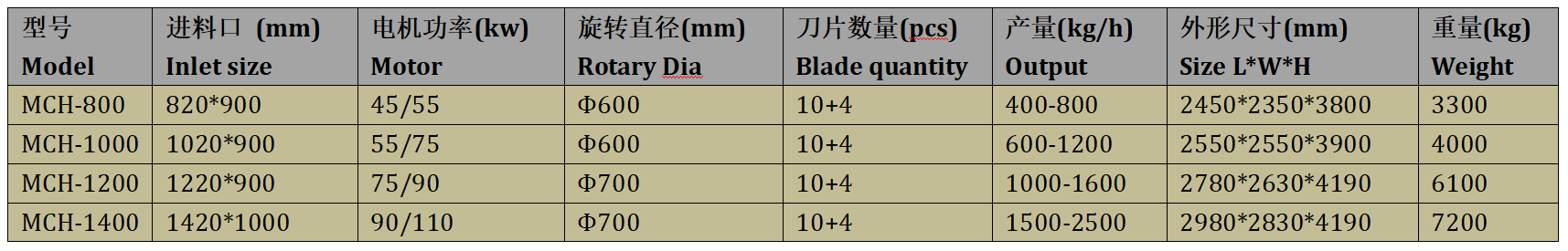

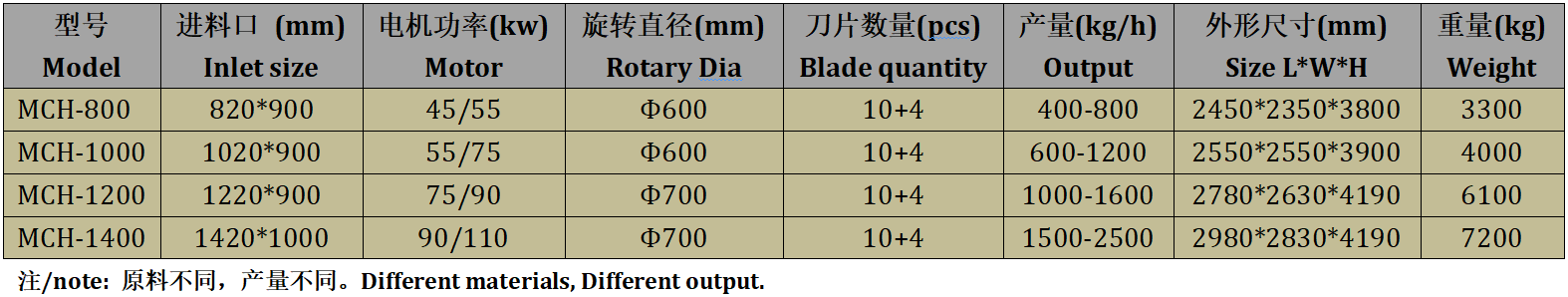

Model of plastic bottle grinder machine in MG Machinery:
Why choose us?
1, provide the most suitable grinder models and proposals according to your requirement quickly.
2, professional designs of machine flowchart and workshop layout quickly
3, best quotation for same level grinder machine from China.
4, high machine manufacturing technics and strict quality requirements.
5, complete machine testing to confirm the high performance parameter before shipment.
6, shipment on time. And we can help on ship booking, container loading with good fastening in factory
7, dispatch engineer for after sale service in your company on time
8, training for machine and operation.
9, technology support all lifetime.
etc.
Customer cases:
Our plastic recycling machines and extrusion machines have been exported to many countries since 2007, for example, Japan, Vietnam, Thailand, Malaysia, India, Iran, UAE, Saudi Arabia, Israel, Iraq, Ukraine, Serbia, Georgia, Russia, Kenya, Ghana, Togo, Sudan, USA, Mexico, Chile, Peru, Bolivia, Argentina, etc.
