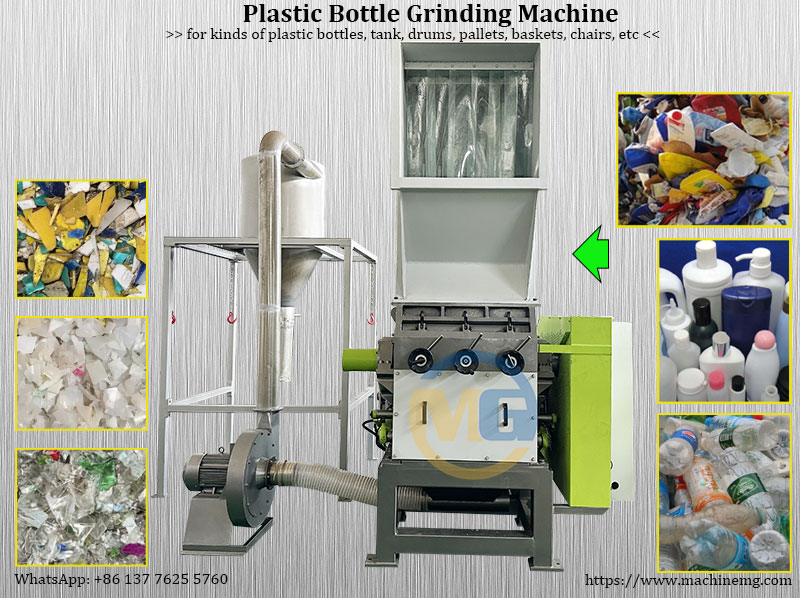

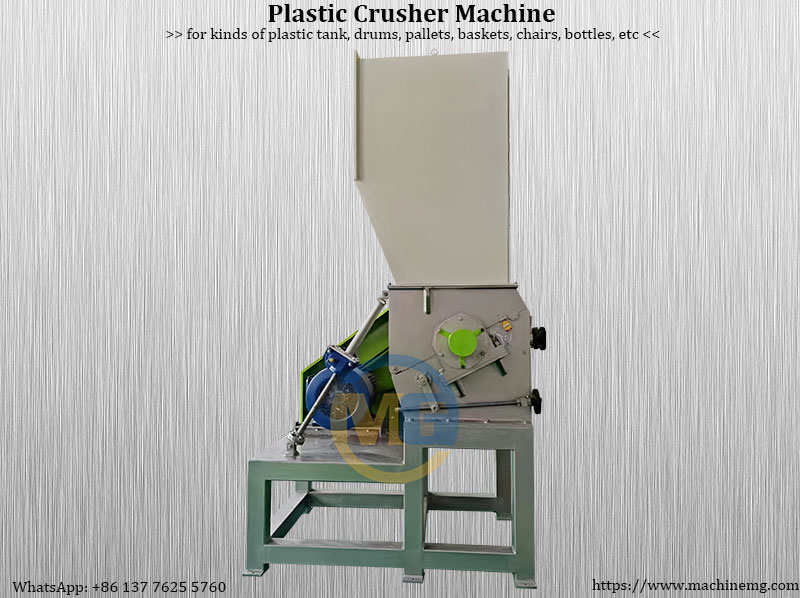

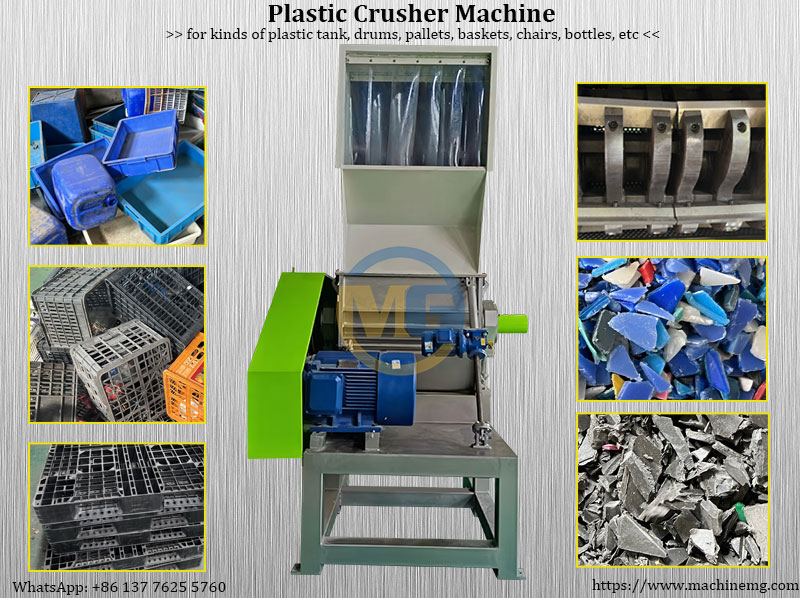

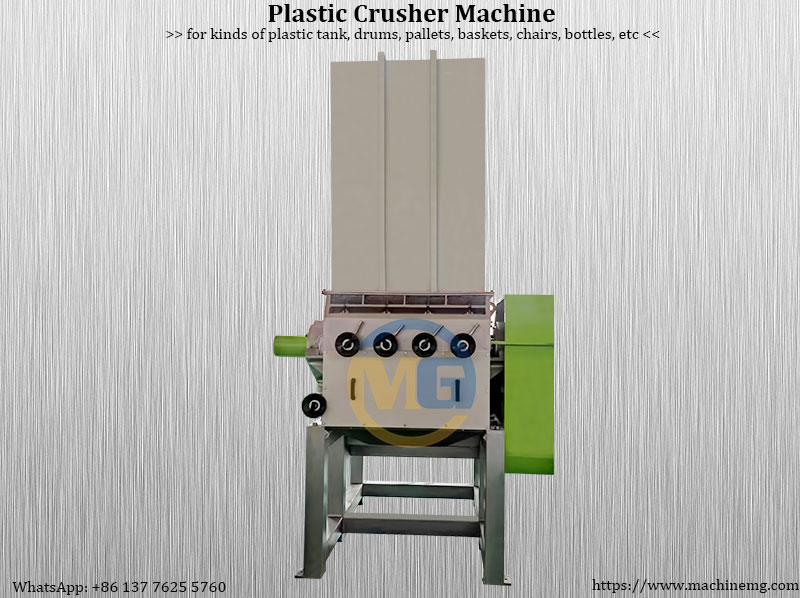

The plastic crusher machine is suitable for crushing the hard plastic waste with small wall thickness and hollow structures. The crusher machine has a strong cutting chamber, welded with thick steel board and fine welded process. the rotor passes the strict dynamic balancing testing. Rotary blades and stationary blades are made of alloy steel such as D2. Size of crushed materials can be controlled by using the screen sieves with different hole diameter.
Application of hard plastic crusher machine:
plastic barrels, drums, tank, containers, bins, baskets, chairs, pallets, shells, etc.
Reference videos of the hard plastic crusher on our YouTube Channel.
Consist of the hard plastic crusher machine

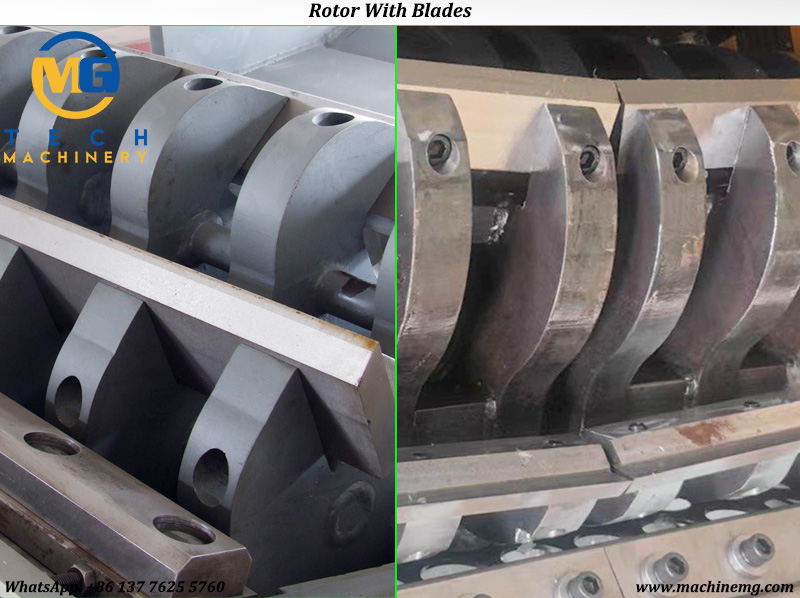

1, rotor and blades
The rotor of crusher is with 5 mounting rows for the rotary blades in V shape arrangement, So that the plastic material can be cut into pieces instead of being torn apart. In this way, It brings the higher throughput but less powder material, smooth cutting, and lower noise levels.
The plastic crushers use external bearing mounting way, water proof, easy maintenance.
Both rotary blades and stationary blades are made of alloy steel, such as D2, good durability.
And the blades can be sharpened repeatedly in a long time once they are blunt.

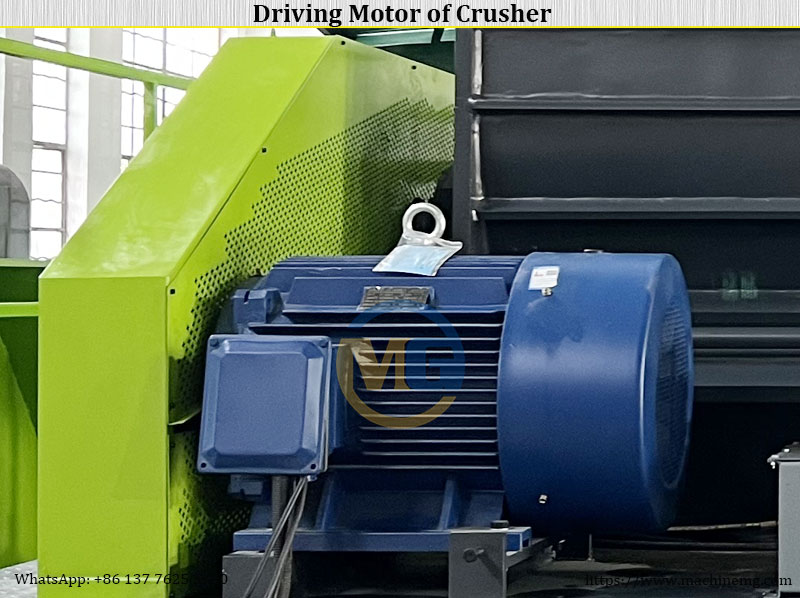

2, driving system
The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. The motor drives the rotor through V belt and pulley.
Good quality motors are used for our crusher machines, for example, WN, SIEMENS and JIAMUSI, with high efficiency of energy utilization for long stable running time.
3, hopper
Usually we make the hard plastic crusher machines with side feeding inlets, and install plastic curtains on the inlet of crusher, to prevent the materials pump out while the crushing. On the top inside of the hopper, water spray unit is installed, but the users can choose to crush the plastic with water or without water.

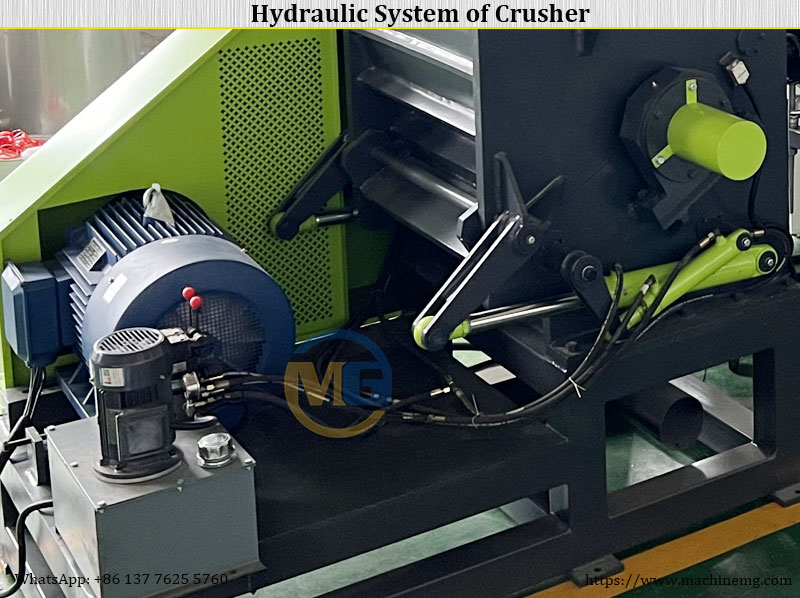

Two units are optional for opening of the hopper for blade replacement or chamber cleaning. One is mechanical screw rod design, the other one is hydraulic system.
4, screen unit
Screen sieves with different mesh sizes are replaceable based on different size requirements. A mechanical unit for easy change working.
The hinged screen frame is convenient for replacement of the screen sieves, and it can be installed and removed through a separate door.
5, crusher body frame
The body frame has a solid welded construction with thick carbon steel to form the heavy structure for steady crushing, avoid the frame cracking and excessive stress damage while crushing with full material loading. And anti-vibration rubber feet can be fixed to reduce vibration and noise.
6, safety limit switch
A safety unit is installed on the crusher frame, once the hopper or front door is not closed well, the crusher will not start up.
And two emergency stop buttons are set on the machine body and control panel for quick response when emergency happen.
Assist machines for working with the hard plastic crusher:
1, belt conveyor: it can be used to feed the waste plastic materials into the crusher for crushing from the ground, labor saving, and stable feeding control.
2, screw loader: it is usually used to discharge the crushed materials from the crusher bottom.
For more, the hard plastic crusher can be used together with other recycling machines in a plastic crushing washing recycling line.
Is it the crusher machine what you are looking for? please send an enquiry for more details and official quotation.
Advantage of the hard plastic crusher
1, the main rotor passes strict dynamic balancing testing.
2, V shape installation for alloy blades to get higher output.
3, external bearing mounting for heavy duty bearing, water proof,dust proof, easy maintenance.
4, mechanical hydraulic system for hopper opening and sieve change, labor saving, fast and safe.
5, with safety limit switch, if the crusher parts is not closed 100%, it can‘t be started.
6, robust welded steel construction, heavy crusher model.
7, over load protective automatically.
8, quality certificate.
Etc.

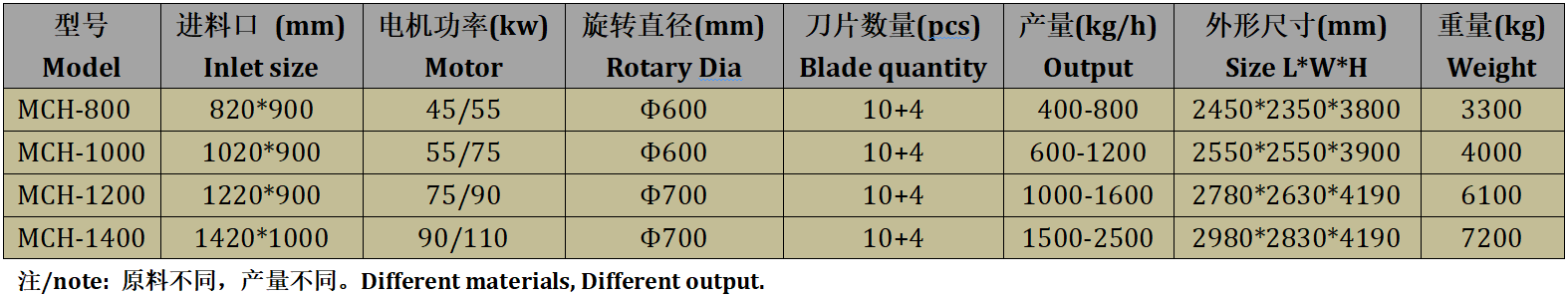

Model of hard plastic crusher machine in MG Machinery:
