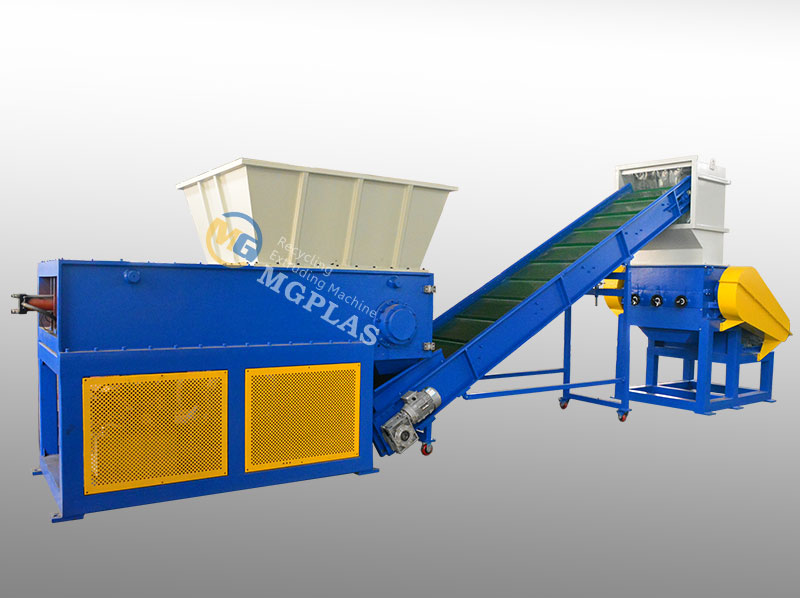

Shredding crushing production line consists of the following units usually:
1, feeding belt conveyor (optional).
2, single shaft shredder.
3, belt conveyor: for connection of shredder and crusher.
4, crusher
5, cyclone silo: for materials package
The Shredding crushing production line is very efficient for processing the big and hard waste plastic materials into 8~12mm particles for easy reuse, for example, kinds of plastic lumps, plastic bottles, plastic baskets, plastic shells of household appliances (e.g. TV, computer, refrigerator, washer machine, etc), etc.
Especially for the rigid waste plastics with large size, more thickness and hardness, the plastic lumps shredder crusher production line has very good performance.
Plastic lumps shredding crushing production line has the following characters:
1, two functions of shredding and crushing in a line. the discharged particle materials can be reused directly.
2, main shaft is driven by gear reducer, big torque, steady working and low noise.
3, hydraulic feeding mechanism, independent power unit, strong frame structure.
4, SKD II blades with four edges for alternative use before replacement, long lifetime.
5, quick change screens for accurate particle size control.
6, shredding chamber floor with brass guides & nylon slides.
7, water cooling for main shaft.
8, electrical cabinet with Siemens PLC control system, auto control for co-rotation and reversal.
9, auto protection while over-load.
10, with ECM CE certification.
Model of plastic lumps shredding crushing production line in MG Machinery:
