Coupler Type Single Shaft Shredder Machine

Product Description

Sinlge shaft shredder machine with coupler design for connection of gearbox and main rotor, It's an efficient waste recycling shredder for shredding the waste materials with more thickness and hardness, for example, kinds of PVC PE PP PET ABS PS PC and nylon lumps from the plastic extrusion, injection, pelletizing, blowing production, HDPE water pipes and gas pipes, plastic barrels, drums, pallets, wood blocks, clothes waste, PET fibers, package belts, circuit boards, copper cables and aluminum cans, etc.

This single shaft shredder machine has shaft coupling design, It can provide big torque for shredding and protect the shredder well by the good performance of buffering and vibration proof to enhance dynamic performance of main rotor of the shredder.

Features

Advantage of coupler type single shaft shredder machine in MG Machinery:

1, main shaft is driven by gear reducer, big torque, steady working and low noise.

2, hydraulic feeding mechanism, independent power unit.

3, SKD-II rotary blades with four edges for alternative working before replacement, long life time.

4, quick change screens for accurate particle size control.

5, shredding chamber floor with brass guides & nylon slides.

6, water cooling design for main shaft to enhance the working performance

7, electrical cabinet with Siemens PLC control system, auto control for co-rotation and reversal.

8, Auto protection while over-load.

9, strong frame structure, steady running, long lifetime.

10, with ECM CE certification.

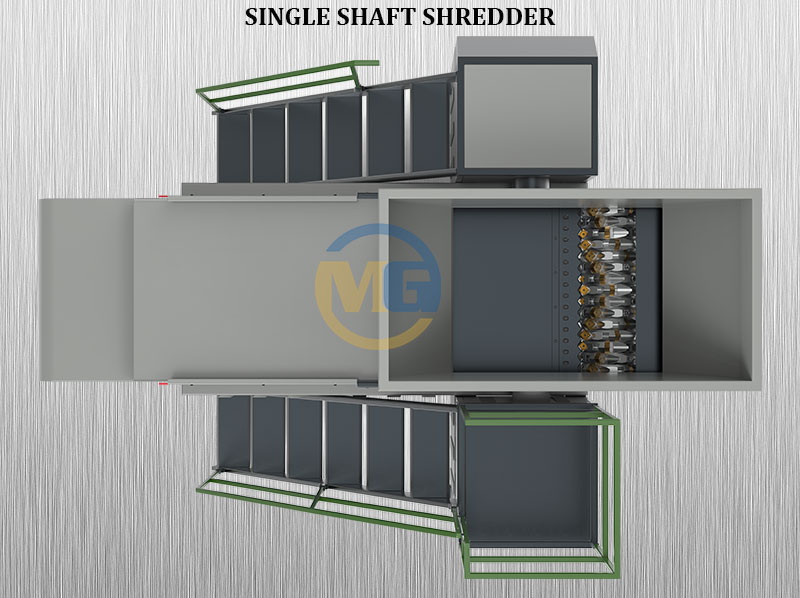

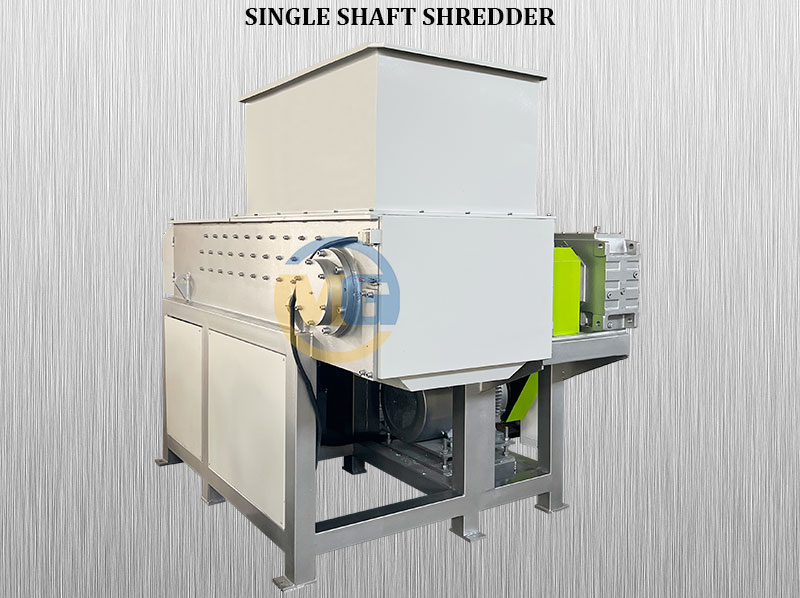

Coupler Type Single Shaft Shredder Machine

Coupler Type Single Shaft Shredder Machine

Coupler Type Single Shaft Shredder Machine

Coupler Type Single Shaft Shredder Machine

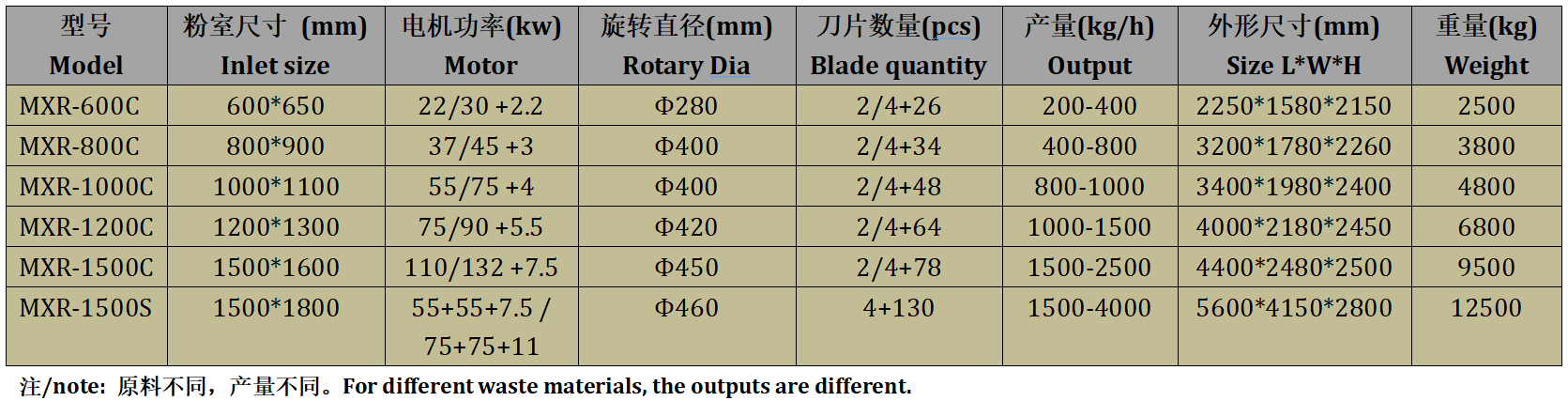

Main Techincal Parameter

Model of coupler type single shaft shredder in MG Machinery:

Coupler Type Single Shaft Shredder Machine
