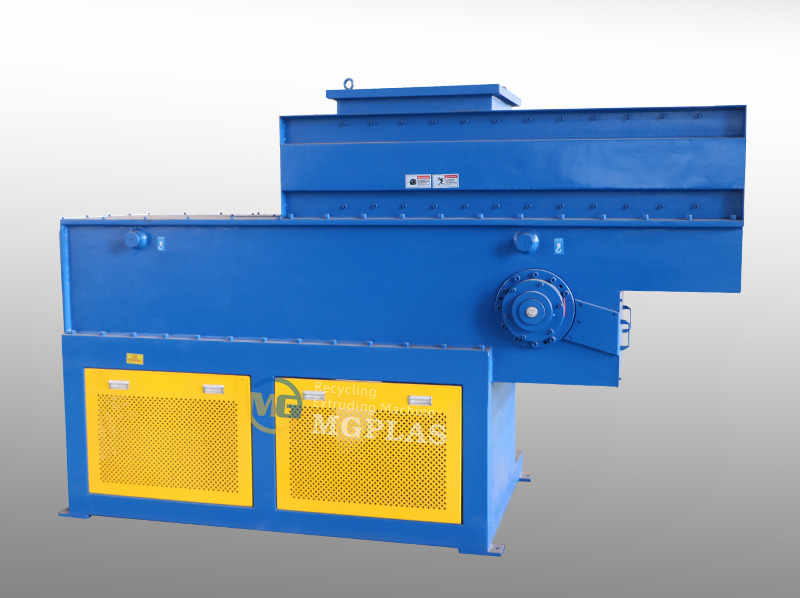

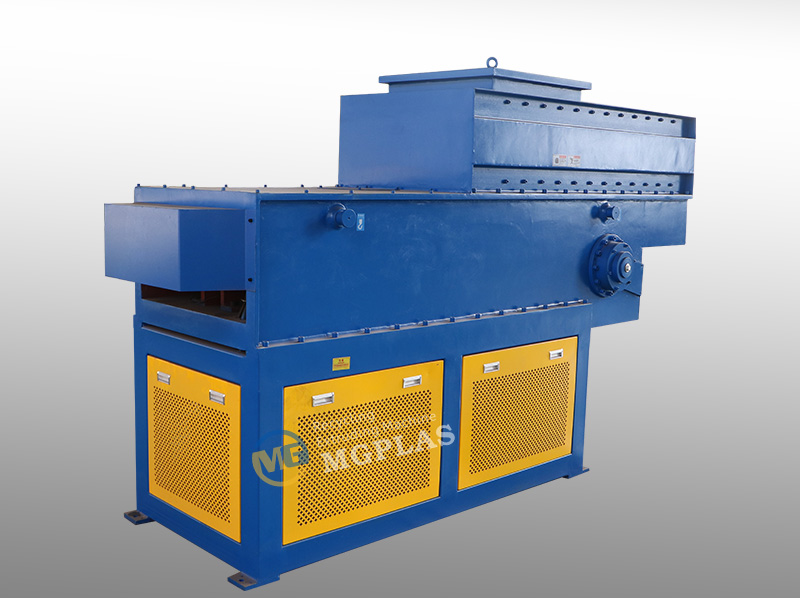

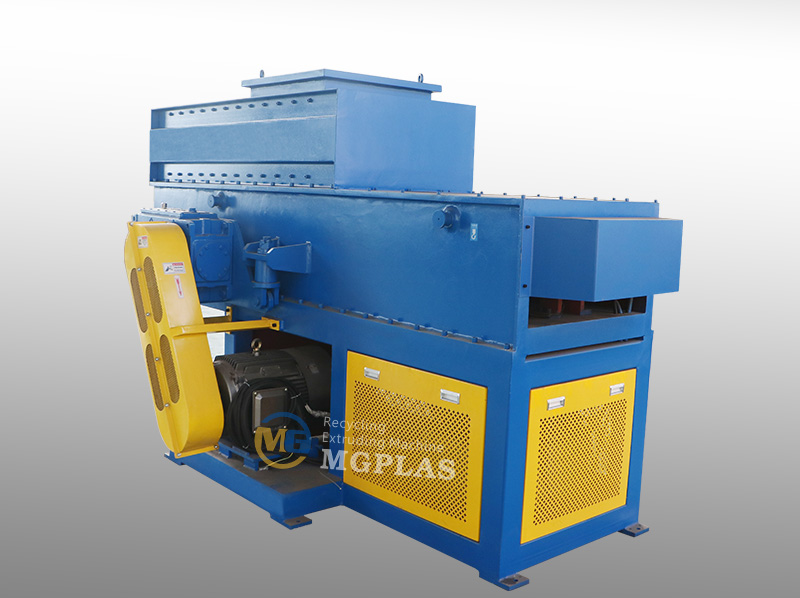

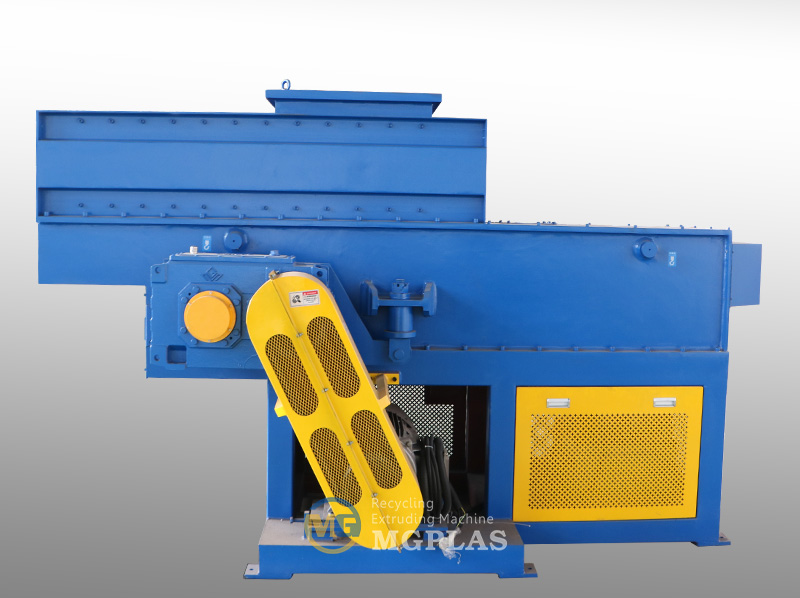

PVC pipe shredder machine is single shaft shredder type. With the movable feeding hopper, It's very efficient for shredding waste PVC pipes. Meanwhile, It can shred other plastic pipes such as HDPE pipes and PPR pipes, etc. And the plastic drums, barrels and containers can be also shredded on this single shaft PVC pipe shredder machine.

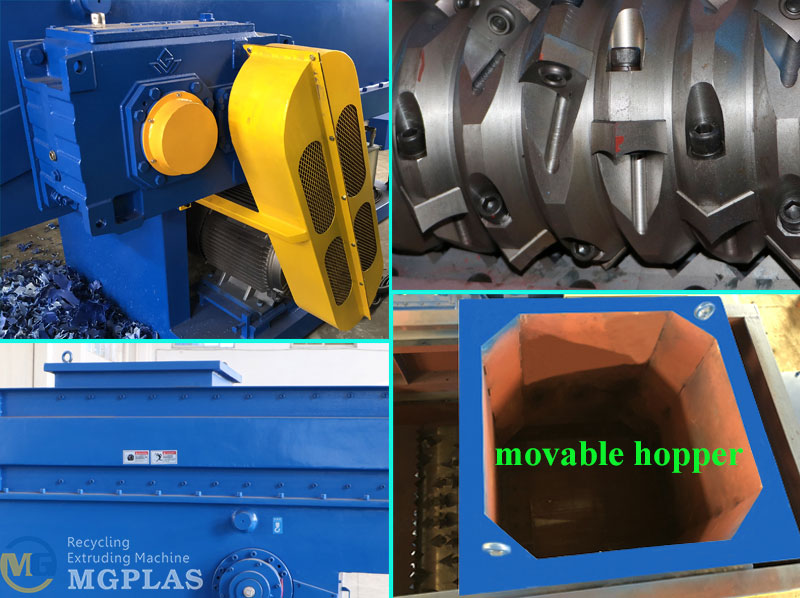

The PVC pipe shredder has vertical movable feeding hopper, which can ensure the full material loading to the rotating rotor during the whole shredding process for high output.
In MG Machinery, the PVC pipe shredder machine has the following characters:
1, vertical movable feeding hopper push the materials to the rotating rotor for shredding all the time, high efficiency and big capacity.
2, main shaft is driven by gear reducer, big torque, steady working and low noise.
3, hydraulic feeding mechanism, independent power unit, strong frame structure.
4, SKD II blades with four edges for alternative use before replacement, long lifetime.
5, quick change screens for accurate particle size control.
6, shredding chamber floor with brass guides & nylon slides.
7, water cooling for main shaft.
8, electrical cabinet with Siemens PLC control system, auto control for co-rotation and reversal.
9, auto protection while over-load.
10, with ECM CE certification.

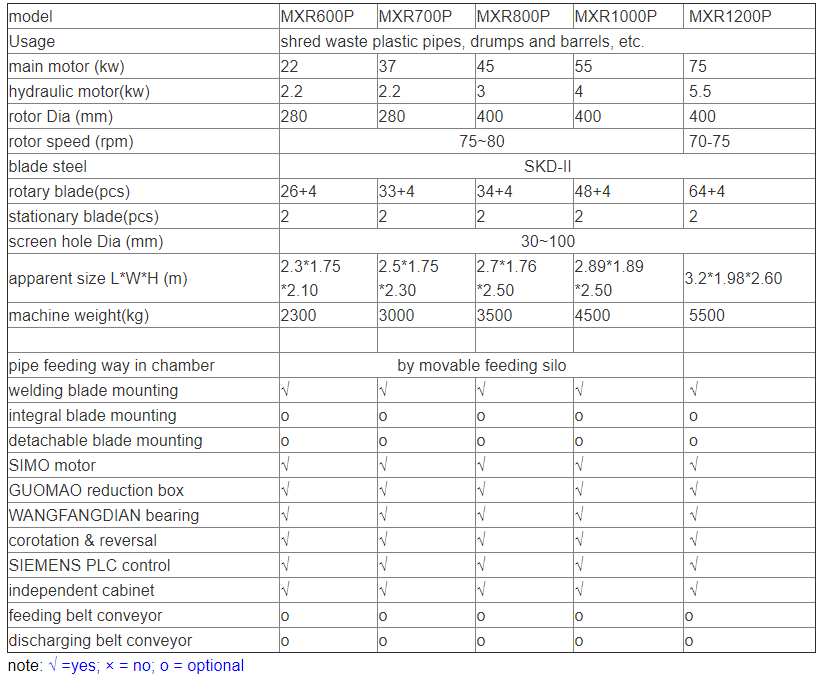

Models of PVC pipe shredder machine in MG Machinery:
