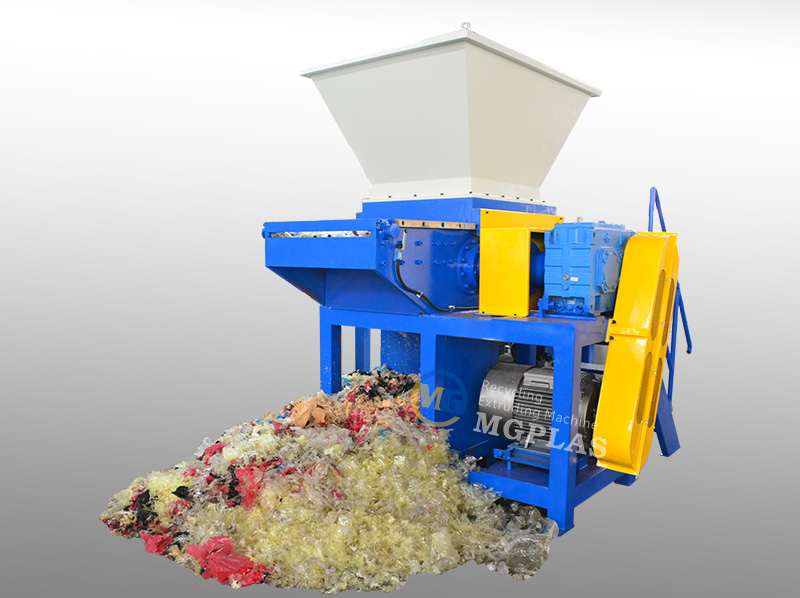

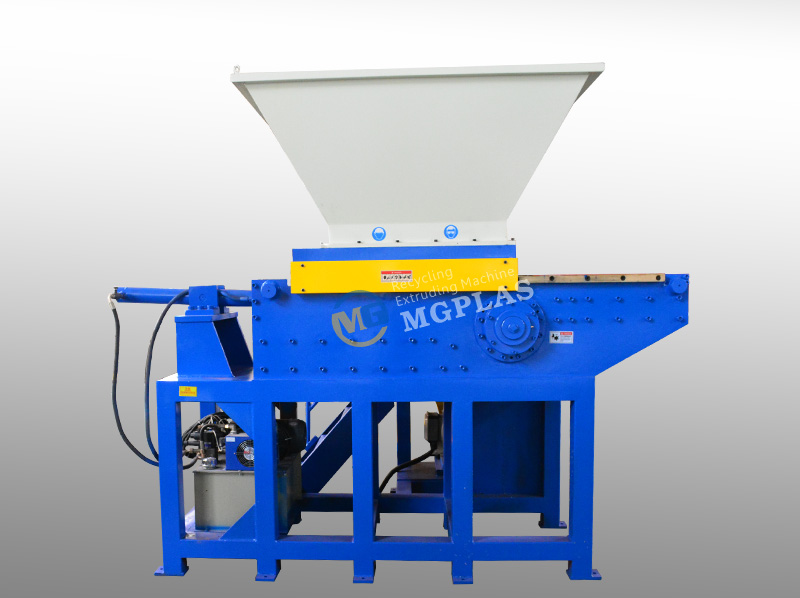

Plastic film shredder equipment is single shaft type with coupler and movable feeding hopper design. It can be used for shredding the waste plastic films such as package films, agricultural films, greenhouse films, tobacco mulching films and shopping bags. etc. And it can process the pp jumbo bags, woven bags and fabric wastes, etc.

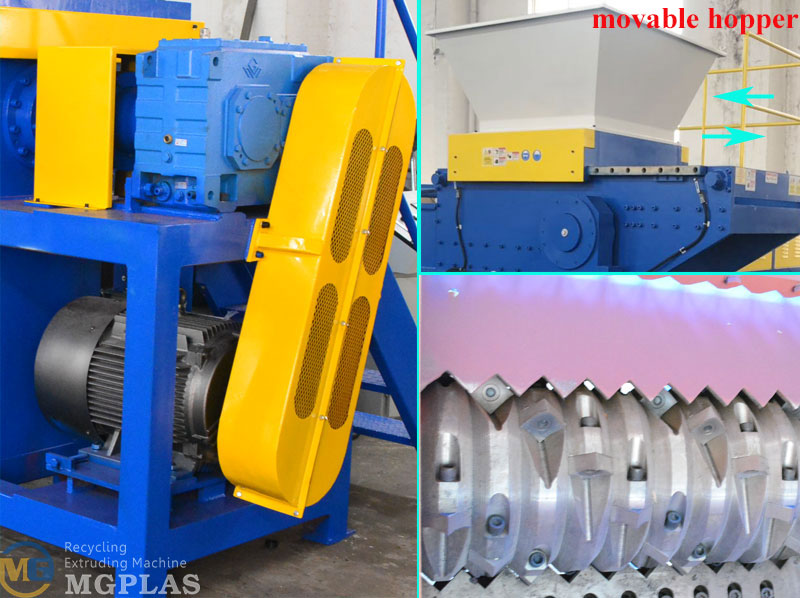

The plastic film shredder has two important designs: one is coupler for connection of reducer and rotor, It can provide big torque for working and protect the rotor by good shake-proof performance. The other one is the movable feeding hopper which can ensure the full material loading to the rotating rotor for high output.
In MG Machinery, the PP woven bag shredder equipment has the following characters:
1, movable feeding silo ensure the rotor and knives shred the material all the time, high efficiency and big capacity.
2, coupler for good shake-proof performance and big torque for shredding, low noise.
3, strong frame structure for steady working.
4, strong cylinder rods for hydraulic feeding mechanism, independent power unit.
5, SKD-II rotor blades with four edges for alternative use before replacement, long lifetime.
6, quick change screens for accurate particle size control.
7, shredding chamber floor with brass guides & nylon slides.
8, water cooling design for main shaft.
9, electrical cabinet with Siemens PLC control system, auto control for co-rotation and reversal.
10, Auto protection while over-load.
11, with ECM CE certification.

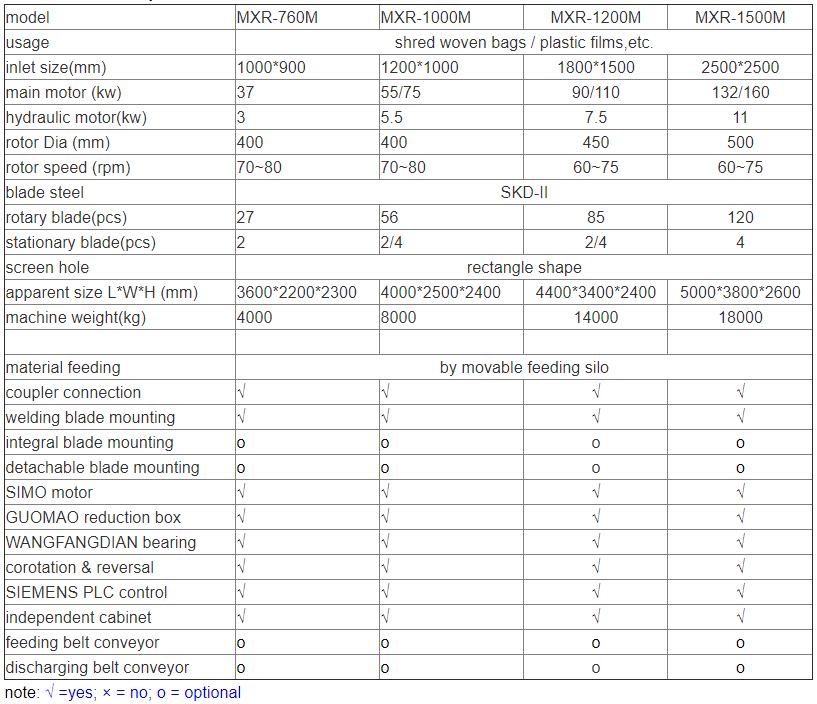

Models of plastic film shredder equipment in MG Machinery:
