HDPE drum shredder with vertical movable feeding hopper, It's developed for shredding waste plastic barrels efficiently, for example, water drums, paints drms, chemical drums and medicine drums, etc. By the shredding process, the waste plastic drums can be disposed into small sizes for deep crushing and reusing with more efficiency.
The HDPE drum shredder is single shaft shredder type. On this shredder, It consists the good units, for example, SIMO motor, GUOMAO reducer, SKD-II blades and SIEMENS PLC, etc. Strong structure, low power consumption, steady shredding working, long lifetime.

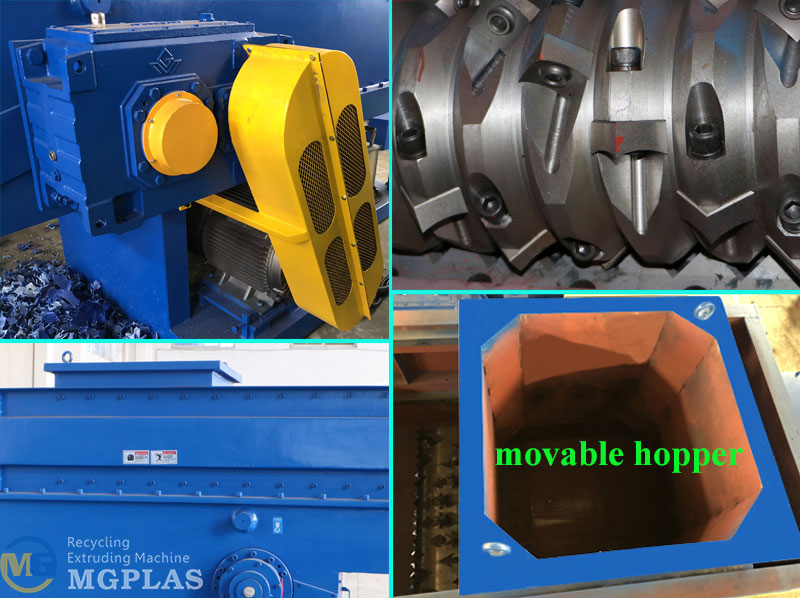

And above all, the HDPE drum shredder has vertical movable hopper design, which can ensure the full material feeding to the rotating rotor while the shredding process for high output.
Besides the plastic drums, the single shaft drum shredder machine can be used to dispose other waste plastics, for example, plastic pipes, containers and barrels, etc.
It has high investment value for the plastic production factories, recycling plants and waste collection stations.
In MG Machinery, the HDPE drum shredder machine has the following characters:
1, vertical movable feeding hopper push the materials to the rotating rotor for shredding all the time, high efficiency and big capacity.
2, main shaft is driven by gear reducer, big torque, steady working and low noise.
3, hydraulic feeding mechanism, independent power unit, strong frame structure.
4, SKD II blades with four edges for alternative use before replacement, long lifetime.
5, quick change screens for accurate particle size control.
6, shredding chamber floor with brass guides & nylon slides.
7, water cooling for main shaft.
8, electrical cabinet with Siemens PLC control system, auto control for co-rotation and reversal.
9, auto protection while over-load.
10, with ECM CE certification.

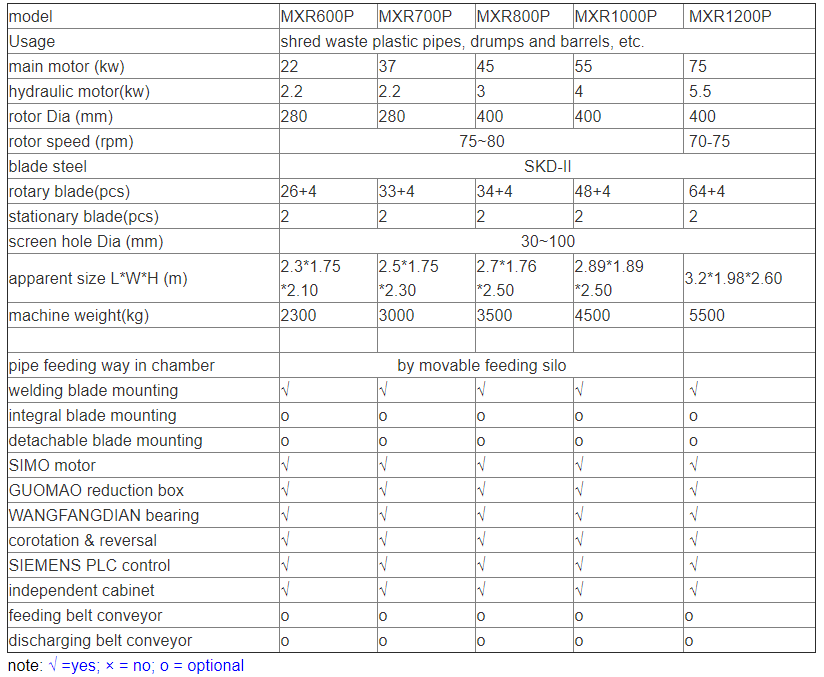

Model of HDPE drum shredder in MG machinery:
