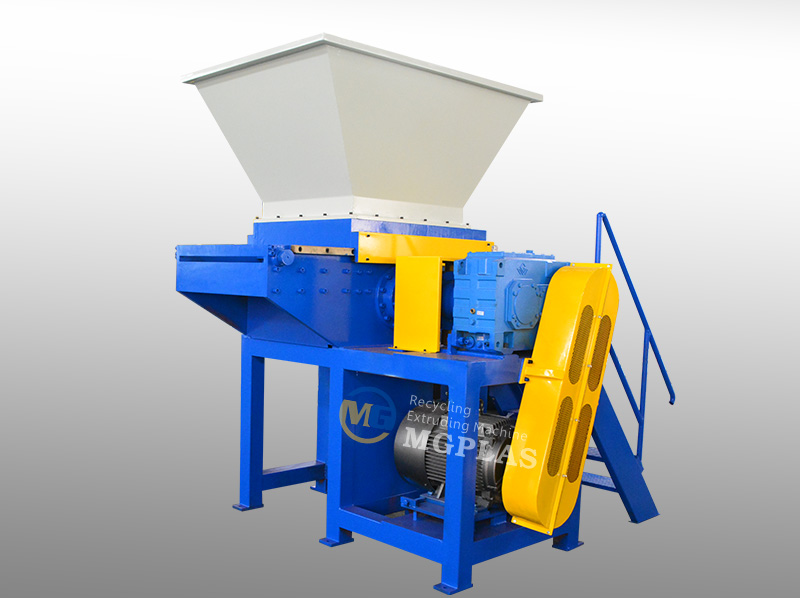

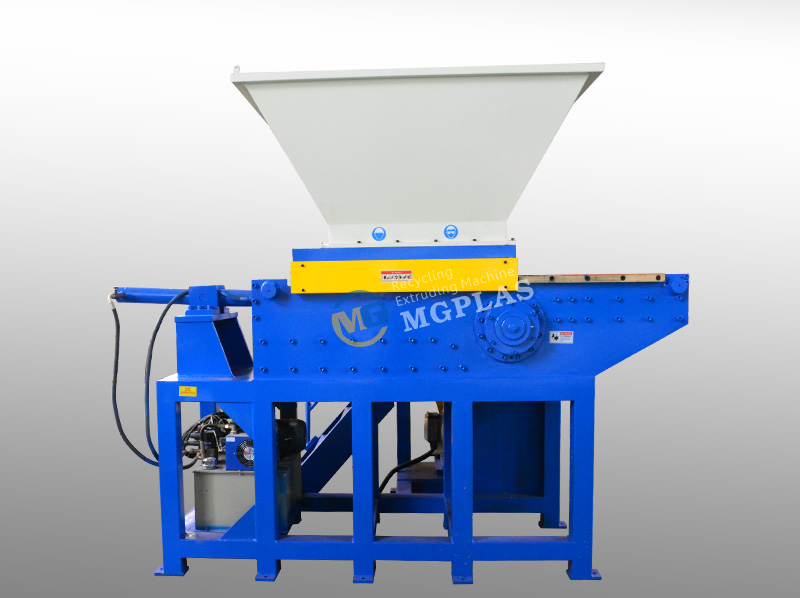

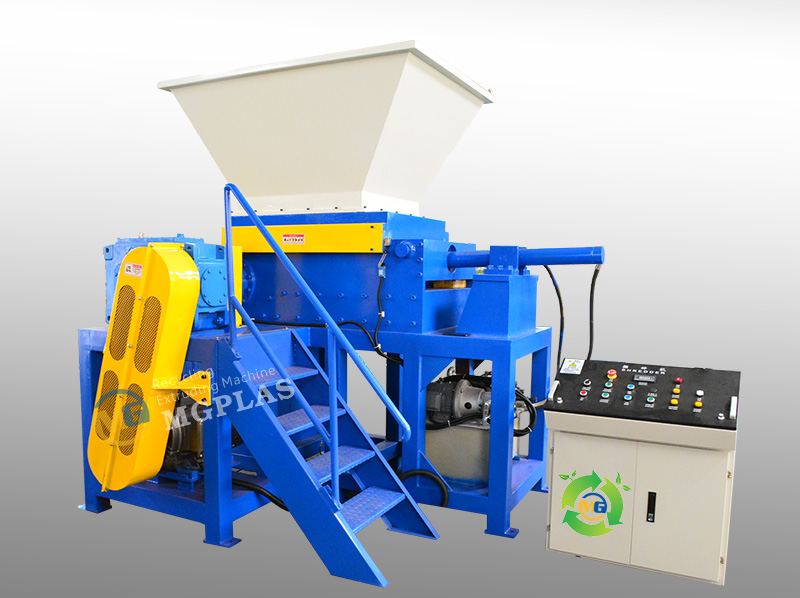

PP woven bag shredder machine is single shaft type with coupler and movable feeding hopper design. It can be used for shredding the polypropylene PP woven bags, jumbo bags, sacks, cement bags and large plastic films. etc.

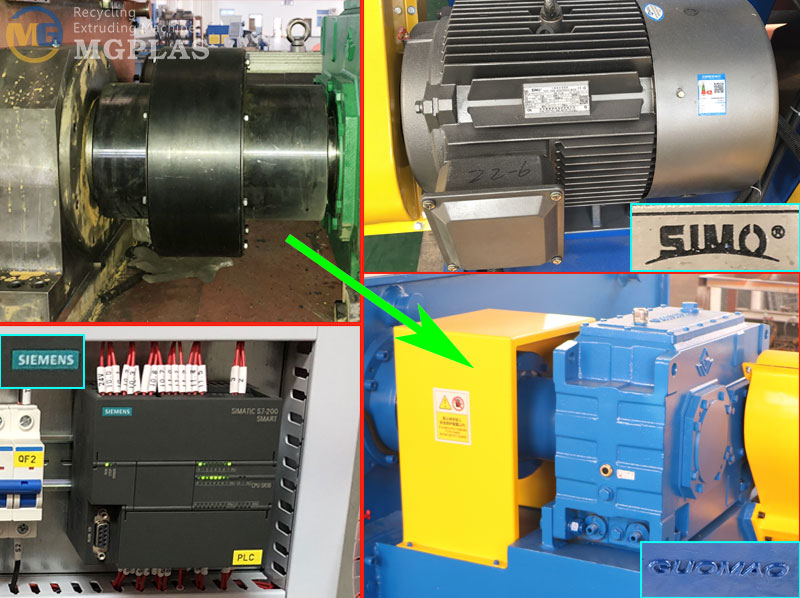

The PP woven bag shredder has two important designs: one is coupler for connection of reduction box and rotor, It can provide big torque for working and protect the rotor by good shake-proof performance. The other one is the movable feeding hopper which can ensure the full material loading to the rotating rotor for high output.
In MG Machinery, the PP woven bag shredder machine has the following characters:
1, movable feeding silo ensure the rotor and knives shred the material all the time, high efficiency and big capacity.
2, coupler for good shake-proof performance and big torque for shredding, low noise.
3, strong frame structure for steady working.
4, strong cylinder rods for hydraulic feeding mechanism, independent power unit.
5, SKD-II rotor blades with four edges for alternative use before replacement, long lifetime.
6, quick change screens for accurate particle size control.
7, shredding chamber floor with brass guides & nylon slides.
8, water cooling design for main shaft.
9, electrical cabinet with Siemens PLC control system, auto control for co-rotation and reversal.
10, Auto protection while over-load.
11, with ECM CE certification.

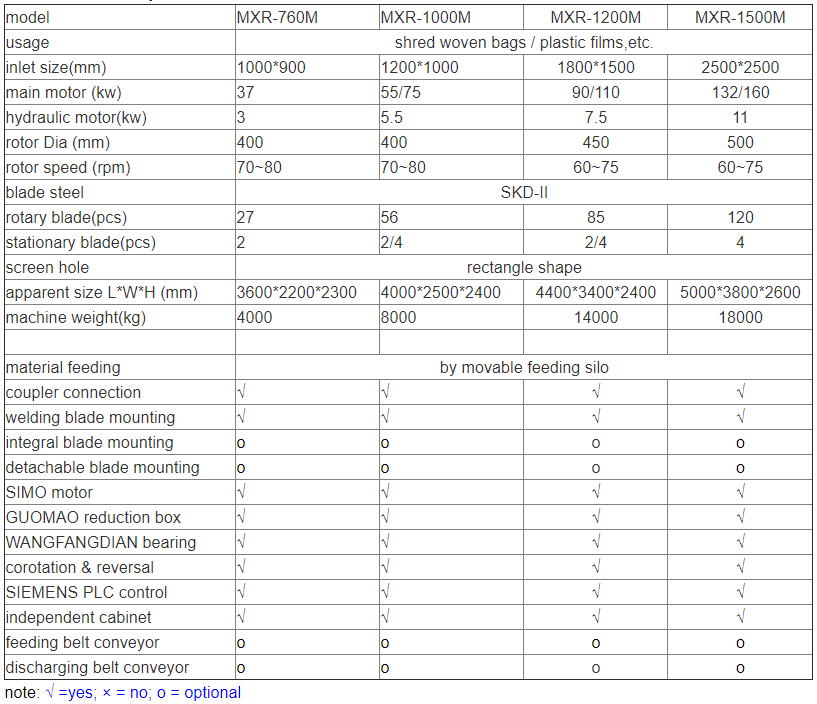

Models of PP woven bag shredder with coupler and movable feeding hopper in MG Machinery:
