PET plastic bottle washing line is used to recycle the waste plastic PET bottles, for example, mineral water bottles, cola bottles, juice bottle, oil bottles and PET preforms, etc. The clean PET flakes will be produced at the end, which has widely usage in extrusion and injection industries for producing fibers, bottles and films etc.

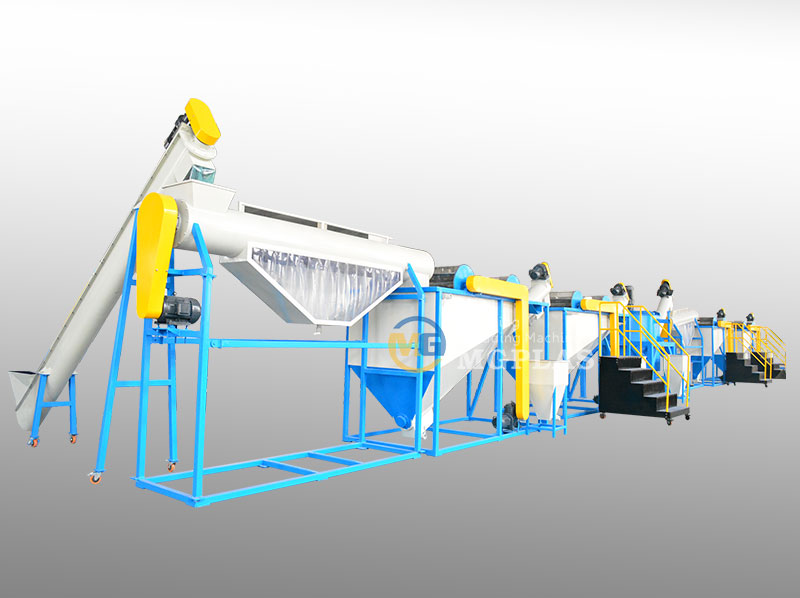

The PET plastic bottle washing line includes the following units:
1, PET bottle label remover.
2, heavy PET bottle crusher.

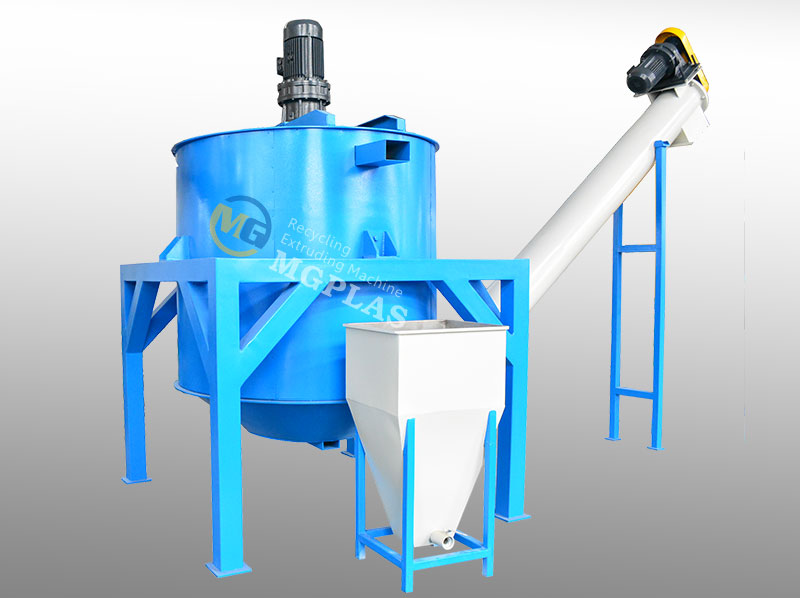

3, hot washer machine.
4, high speed friction washer.

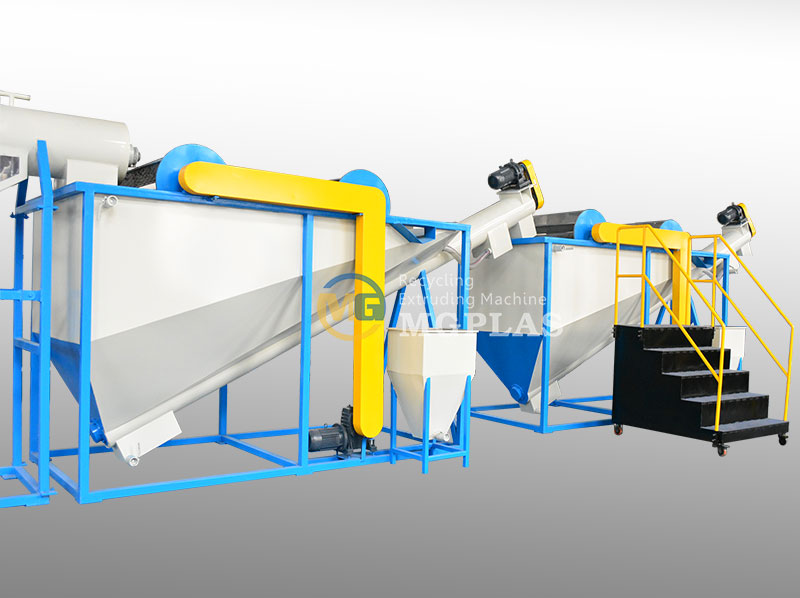

5, 2 float washing tanks
6, spin dewatering machine,
7, cyclone silo
8, belt conveyors
9, screw feeders
10, centralized control cabinet.
The whole PET plastic bottle washing line has high automation and stable working performance.
Advantage of PET plastic bottle washing line in MG Machinery:
1, high automation: PET bottle recycling line of MG PLAS has the high automation, the materials feeder can start or stop automatically by the current signals from the related machine. Besides the feeding and discharging, almost no workers are required.
2, higher impurities removing: the efficient label remover can separate over 99% labels; caps are separated by label remover, hot washer and washing tanks. oil and glue contamination are washed out by the hot washer working together with high speed friction washer and washing tank.
3, strong machine structure designs ensure the steady running in long lifetime.
4, stainless steel SUS304 are used for all screw feeders, hot washer, washing tanks, screens, silo and pipelines.
5, the motors and electrical elements are famous brands products such as SIEMENS, WN and OMRON for safety guarantee.

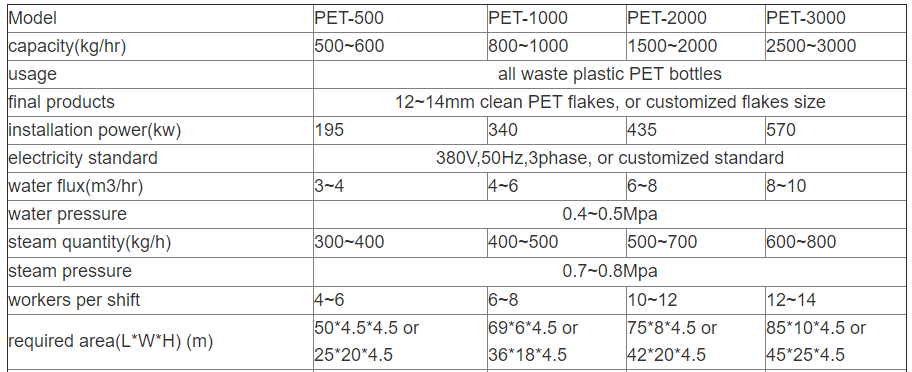

Models of PET plastic bottle washing line in MG Machinery:
