PP PE flakes water ring pelletizer machine is mainly used to product plastic granules from the waste plastic PE, PP flakes and scraps. It is widely used in the waste plastic recycling plants, plastic extrusion or injection manufacturing plants, and other plants for plastic granules modification.

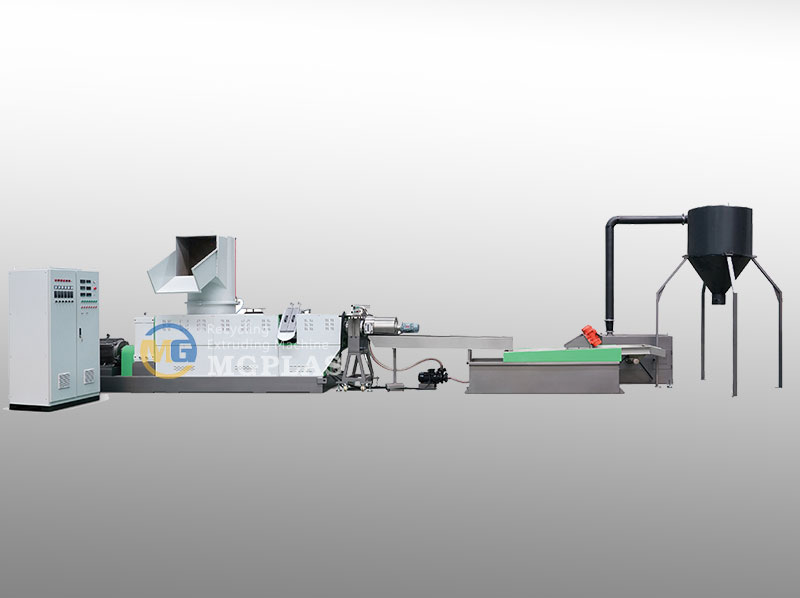

The water ring pelletizer machine includes forced feeder, single-screw extruder, double position hydraulic screen changer, water-ring pellet cutter, dehydrator, cyclone silo and centralized control cabinet.
The processing of PP PE flakes water ring pelletizer.
The plastic flakes or scraps are loaded into the forced feeder silo firstly, then the materials are fed evenly into the single screw extruder for good plasticizing and degassing through forced feeder, after filtering the impurities by the hydraulic screen changer, the plasticized materials are cut into pellets while out from the perforated plate of water-ring cutter, and the pellets are moved with water into dehydrator for dehydrating, finally the pellets are blown into cyclone silo for package.
Machine character
PP PE flakes water ring pelletizer has the following Characters in MG Machinery:
1, wide usage for kinds of waste PP PE plastic films. Big film pieces, film bags and crushed films can be pelletized directly.
2, barrel and screw are made from 38CrMoAlA steel with nitrogen procession for long lifetime.
3, good plasticizing and degassing performance.
4, famous motors and electrical elements, high quality, steady performance and long life.
5, centralized control system for operation of whole line.
6, easy operation and maintenance, etc.
