PP PE strand pelletizer machine is used to produce plastic pellets from waste plastic PP PE films and flakes. It is widely used in the plastic recycling plants, especially for the plastic materials with high fluidity such as PP, BOPP, ABS, PS and PET,etc, the strand cooling and cutting method is more better for pelletizing

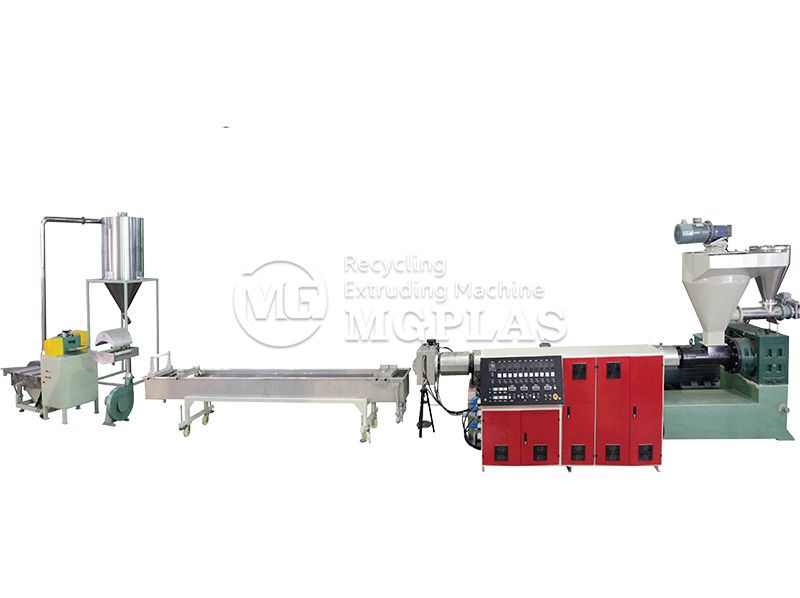

One whole PP PE strand pelletizer line includes cutting compactor or forced feeder, single screw extruder, hydraulic screen changer, strand mould, water cooling tank, blower dryer, pellet cutter, cyclone silo and centralized control cabinet.
The processing of PP PE strand pelletizer line.

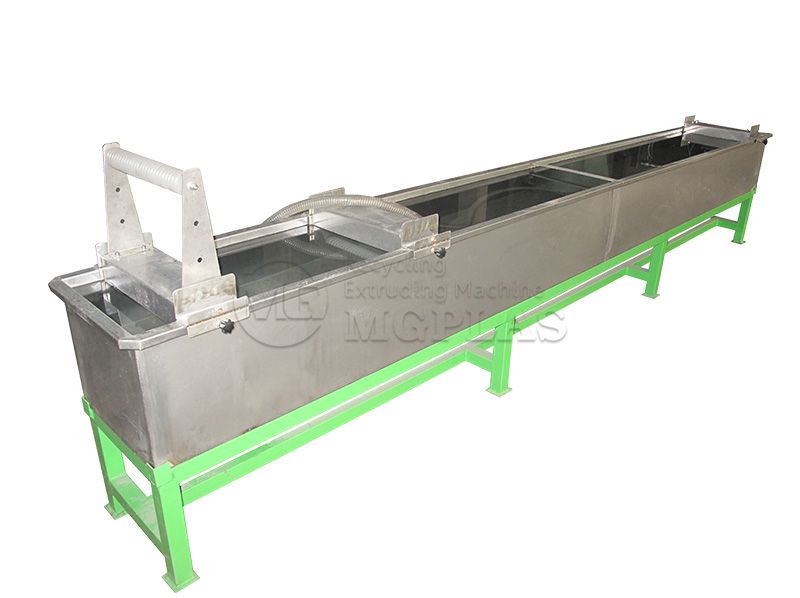

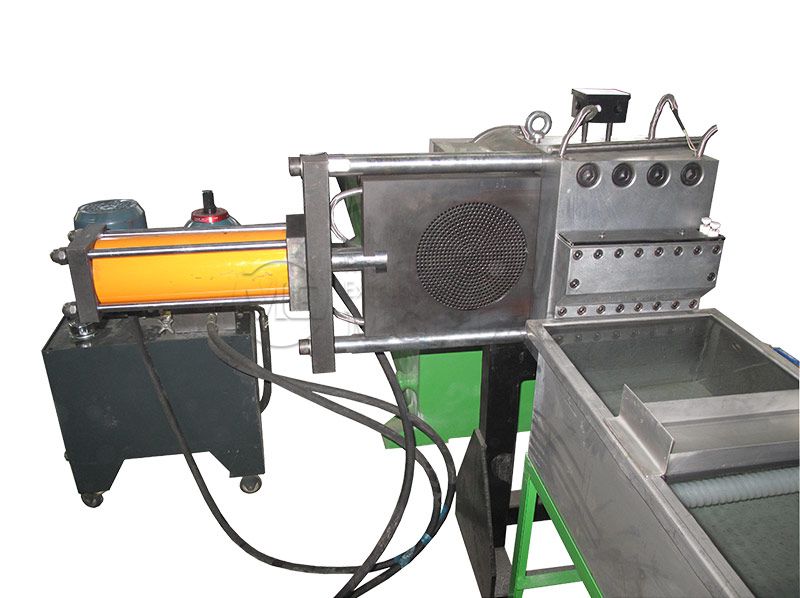

The plastic films or flakes are loaded into cutting compactor or forced feeder firstly, then the materials are fed evenly into the single screw extruder for good plasticizing and degassing, after filtering out the impurities by the hydraulic screen changer, the plasticized materials are formed into strands through the perforated plate mould, and the strand materials are hauled through a cold water tank for cooling, a blower is used to blow off the water from the strands after the cooling tank, then the strands are cut into pellets in the vertical pellet cutter, and the pellets are blown into cyclone silo for package.
Machine character
PP PE strand pelletizer has the following characters in MG Machinery:
1, wide usage for kinds of PE PP waste plastic materials, and PS, ABS, PC, PET, etc.
2, barrel and screw are made from 38CrMoAlA steel with nitrogen procession for long lifetime.
3, good plasticizing and degassing performance.
4, famous motors and electrical elements, high quality, steady performance and long life.
5, centralized control system for operation of whole line.
6, easy operation and maintenance, etc.
Machine models of PP PE strand pelletizer line:
1, 100kg/h
2, 200kg/h
3, 300kg/h
